Productinformatie
-
Specificatie

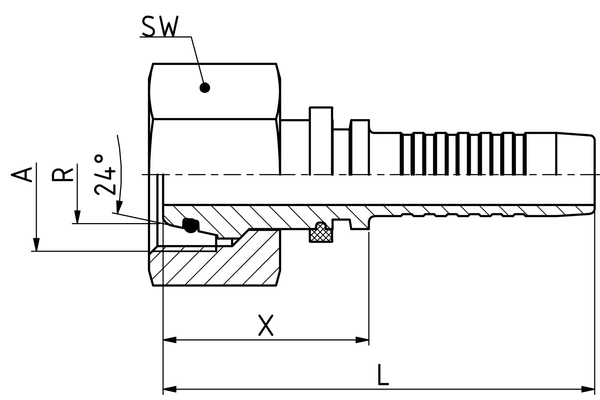

DN: 19 Size: 12 Inch: 3/4 Schroefdraad + norm: Afdichtconus met O-ring conform DIN 3865 (passend voor adapter 24° conform DIN 3901 en 3902), wartel, lichte uitvoering Aansluitingschroefdraad A: M26x1,5 Leidingdiam. R [mm]: 18 X [mm]: 34,6 L1 [mm]: 78,9 Buitendiameter O-ring[mm]: 16 O-ring hoogte [mm]: 2,0 Dikte van de [mm]: 2,0 SW1 [mm]: 32 Moertype: Geborgd Aansluitingaanduiding Indunorm: MSOF Aansluitingmethode: DKOL Armaturenserie: Universeel programma XV Bestendigheid tegen roodroest [h]: 350 Bestendigheid tegen witroest [h]: 100 Materiaal: Automatenstaal Materiaal O-ring: NBR Oppervlak: Cr3
