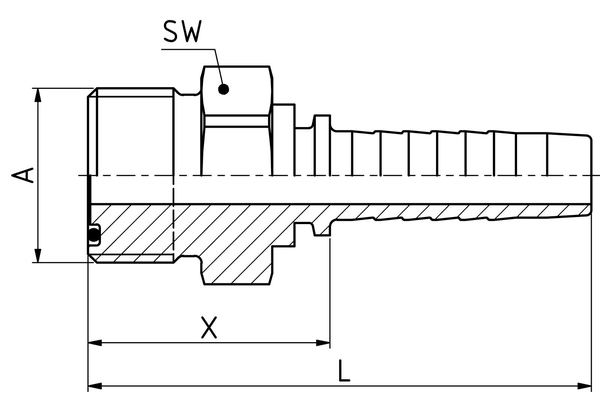

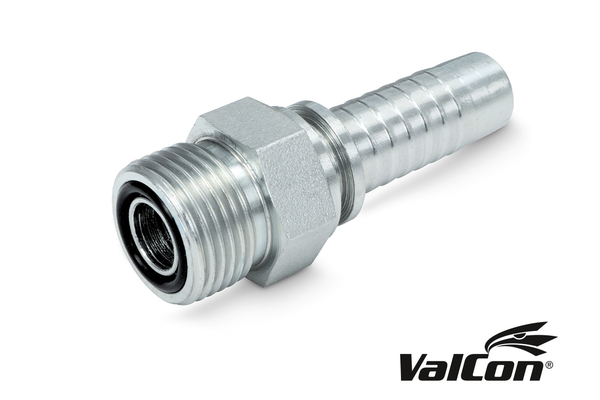

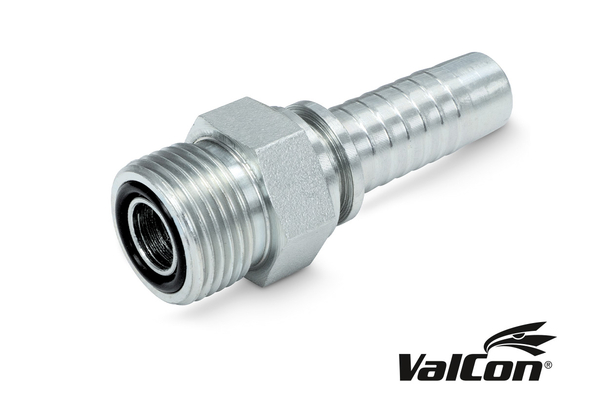

Valcon® ORFS met buitendraad

Gegevens

Artikelnummer
DN
10
12
16
19
25
Size
06
08
10
12
16
Inch
3/8"
1/2"
5/8"
3/4"
1"
Schroefdraad + norm
ORFS-afdichtvorm, buitenschroefdraad met O-ring aan de kopse zijde, UN-/UNF-/UNS-schroefdraad
ORFS-afdichtvorm, buitenschroefdraad met O-ring aan de kopse zijde, UN-/UNF-/UNS-schroefdraad
ORFS-afdichtvorm, buitenschroefdraad met O-ring aan de kopse zijde, UN-/UNF-/UNS-schroefdraad
ORFS-afdichtvorm, buitenschroefdraad met O-ring aan de kopse zijde, UN-/UNF-/UNS-schroefdraad
ORFS-afdichtvorm, buitenschroefdraad met O-ring aan de kopse zijde, UN-/UNF-/UNS-schroefdraad
d [mm]
7,0
9,5
12,0
15,0
20,0
T
11/16-16
13/16-16
1-14
1.3/16-12
1.7/16-12
E [mm]
19
22
27
32
38
C [mm]
26,2
29,3
33,4
35,9
37,4
L [mm]
55,7
60,8
67,9
75,5
90,9
Aantal


Standaard nominale maten in vetgedrukte uitvoering

Productinformatie

  • Technische gegevens
    Aansluitingaanduiding Indunorm: ORM
    Aansluitingmethode: ORFS met buitendraad
    Armaturenserie: VC
    Materiaal: Automatenstaal
    Oppervlak: CrIII
    Uitvoering: 0°
