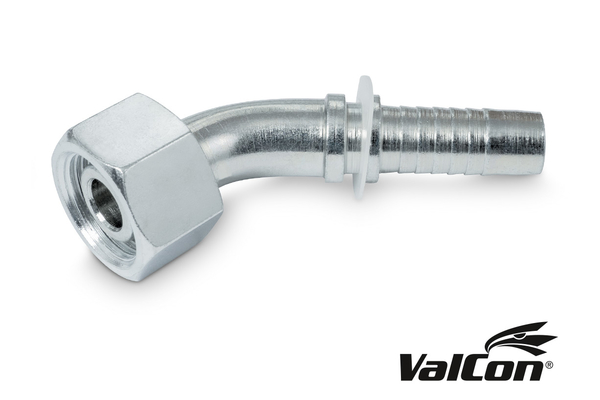

ValCon® DKOS 45°

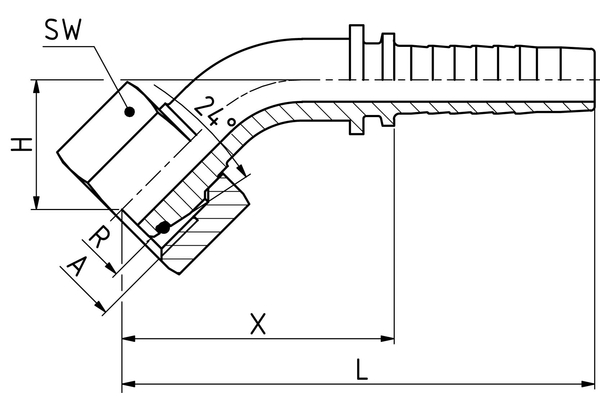

Gegevens

DN
6
6
8
10
19
25
6
8
10
12
16
19
25
Size
04
04
05
06
12
16
04
05
06
08
10
12
16
Inch
1/4"
1/4"
5/16"
3/8"
3/4"
1"
1/4"
5/16"
3/8"
1/2"
5/8"
3/4"
1"
Schroefdraad + norm
Afdichtconus met O-ring conform DIN 3865 (passend voor adapter 24° conform DIN 3901 en 3902), wartel, zware uitvoering
Afdichtconus met O-ring conform DIN 3865 (passend voor adapter 24° conform DIN 3901 en 3902), wartel, zware uitvoering
Afdichtconus met O-ring conform DIN 3865 (passend voor adapter 24° conform DIN 3901 en 3902), wartel, zware uitvoering
Afdichtconus met O-ring conform DIN 3865 (passend voor adapter 24° conform DIN 3901 en 3902), wartel, zware uitvoering
Afdichtconus met O-ring conform DIN 3865 (passend voor adapter 24° conform DIN 3901 en 3902), wartel, zware uitvoering
Afdichtconus met O-ring conform DIN 3865 (passend voor adapter 24° conform DIN 3901 en 3902), wartel, zware uitvoering
Afdichtconus met O-ring conform DIN 3865 (passend voor adapter 24° conform DIN 3901 en 3902), wartel, zware uitvoering
Afdichtconus met O-ring conform DIN 3865 (passend voor adapter 24° conform DIN 3901 en 3902), wartel, zware uitvoering
Afdichtconus met O-ring conform DIN 3865 (passend voor adapter 24° conform DIN 3901 en 3902), wartel, zware uitvoering
Afdichtconus met O-ring conform DIN 3865 (passend voor adapter 24° conform DIN 3901 en 3902), wartel, zware uitvoering
Afdichtconus met O-ring conform DIN 3865 (passend voor adapter 24° conform DIN 3901 en 3902), wartel, zware uitvoering
Afdichtconus met O-ring conform DIN 3865 (passend voor adapter 24° conform DIN 3901 en 3902), wartel, zware uitvoering
Afdichtconus met O-ring conform DIN 3865 (passend voor adapter 24° conform DIN 3901 en 3902), wartel, zware uitvoering
Leidingdiam. R [mm]
06
H [mm]
16,0
15,0
17,0
17,0
30,0
38,0
16,0
19,0
19,0
20,0
27,0
32,0
35,0
d [mm]
6,0
4,0
5,5
7,0
15,0
20,0
4,0
5,5
7,0
9,5
12,0
15,0
20,0
Pipe E [mm]
8
10
12
20
25
10
12
14
16
20
25
30
T
M14x1,5
M16x1,5
M18x1,5
M20x1,5
M30x2
M36x2
M18x1,5
M20x1,5
M22x1,5
M24x1,5
M30x2
M36x2
M42x2
E [mm]
17
19
22
24
36
46
22
24
27
30
36
46
50
C [mm]
20,3
36,0
52,5
57,0
73,0
88,5
40,0
42,0
59,0
65,5
63,0
72,0
84,0
L [mm]
66,5
61,0
80,5
87,0
122,5
142,0
65,0
69,5
87,0
97,5
97,5
121,5
137,5
Aantal


Standaard nominale maten in vetgedrukte uitvoering

Productinformatie

  • Specificatie
    Aansluitingaanduiding Indunorm: MSOF 45°
    Aansluitingmethode: DKOS 45°
    Armaturenserie: VC
    Materiaal: Automatenstaal
    Oppervlak: CrIII
    Uitvoering: 45°

Praktijktip

Bij hogere temperaturen kan de O-ring van NBr gemakkelijk worden vervangen door een O-ring van Viton®; zie XV-SET-OR..L/S-V.
