Productinformatie
-
Technische gegevens

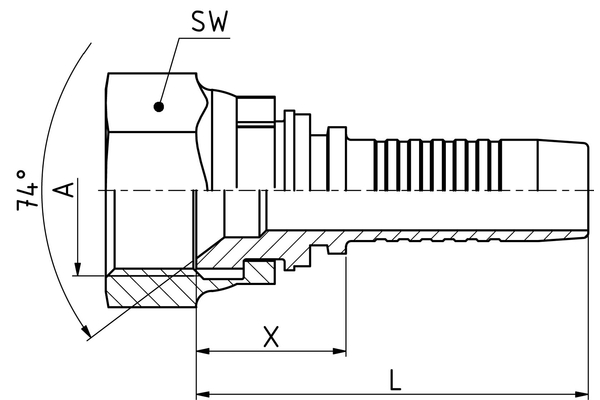

DN: 10 Size: 6 Inch: 3/8 Schroefdraad + norm: JIC-afdichtkop_Dichtkopf, 74°-conus met wartel, UN-/UNF-schroefdraad Aansluitingschroefdraad A: 3/4"-16 UNF X [mm]: 17,0 L1 [mm]: 50,5 SW1 [mm]: 24 Moertype: Cr Aansluitingaanduiding Indunorm: JF Aansluitingmethode: DKJ Armaturenserie: Universeel programma XV Bestendigheid tegen roodroest [h]: 720 Bestendigheid tegen witroest [h]: 120 Materiaal: Automatenstaal Oppervlak: Zn-Ni Uitvoering: 0°
