Productinformatie
-
Technische gegevens

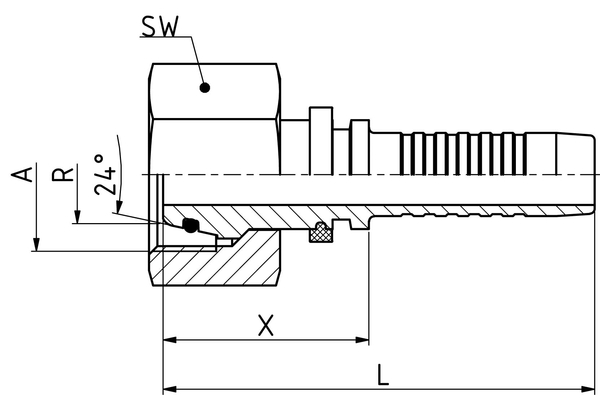

DN: 06 Size: 4 Inch: 1/4 Schroefdraad + norm: Afdichtconus met O-ring conform DIN 3865 (passend voor adapter 24° conform DIN 3901 en 3902), wartel, lichte uitvoering Aansluitingschroefdraad A: M12x1,5 Leidingdiam. R [mm]: 6 X [mm]: 26,5 L1 [mm]: 53,0 Buitendiameter O-ring[mm]: 5 Dikte van de [mm]: 1,5 SW1 [mm]: 14 Moertype: Opsteek Aansluitingaanduiding Indunorm: MSOF Aansluitingmethode: DKOL Armaturenserie: Universeel programma XV Bestendigheid tegen roodroest [h]: 350 Bestendigheid tegen witroest [h]: 100 Materiaal: Automatenstaal Materiaal O-ring: NBR Oppervlak: Cr3
