Productinformatie
-
Technische gegevens

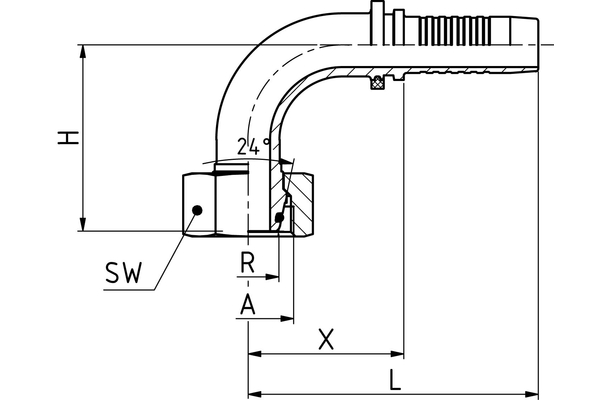

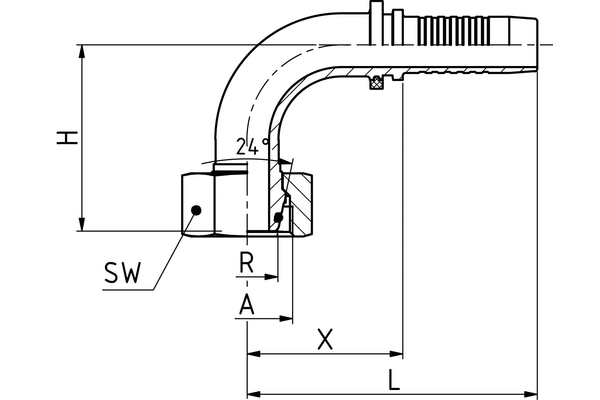

DN: 05 Size: 3 Inch: 3/16 Schroefdraad + norm: Afdichtconus met O-ring conform DIN 3865 (passend voor adapter 24° conform DIN 3901 en 3902), wartel, lichte uitvoering Aansluitingschroefdraad A: M12x1,5 Leidingdiam. R [mm]: 6 X [mm]: 23,5 L1 [mm]: 48,0 H [mm]: 27,0 Buitendiameter O-ring[mm]: 5 O-ring hoogte [mm]: 1,5 SW1 [mm]: 14 Moertype: Wartel Aansluitingaanduiding Indunorm: MSOF 90° Aansluitingmethode: DKOL 90° Armaturenserie: Universeel programma XV Bestendigheid tegen roodroest [h]: 720 Bestendigheid tegen witroest [h]: 120 Materiaal: Automatenstaal Materiaal O-ring: NBR Oppervlak: Zn-Ni Uitvoering: 90°
