Productinformatie
-
Technische gegevens

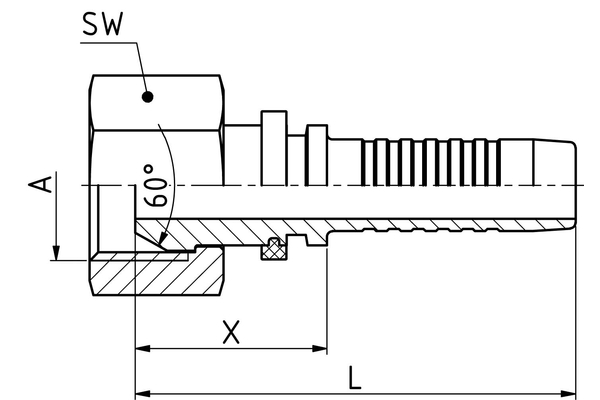

DN: 08 Size: 5 Inch: 5/16 Schroefdraad + norm: BSP-afdichtkop, 60°-conus met wartel, met BSP-schroefdraad Aansluitingschroefdraad A: G 3/8" X [mm]: 26,8 L1 [mm]: 56,9 SW1 [mm]: 22 Moertype: Cr Aansluitingaanduiding Indunorm: BF Aansluitingmethode: DKR Armaturenserie: Universeel programma XV Bestendigheid tegen roodroest [h]: 144 Bestendigheid tegen witroest [h]: 72 Materiaal: Automatenstaal Oppervlak: Cr3 Uitvoering: 0°
