Productinformatie
-
Technische gegevens

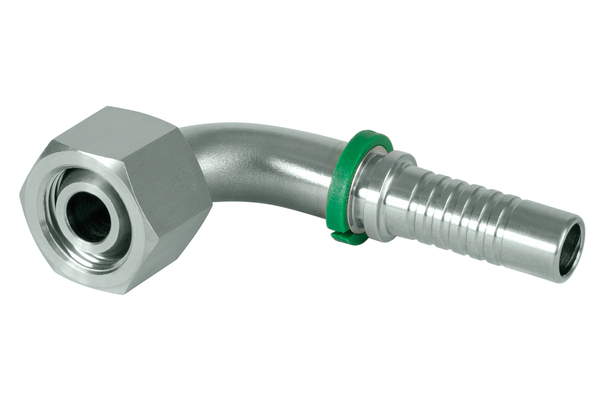

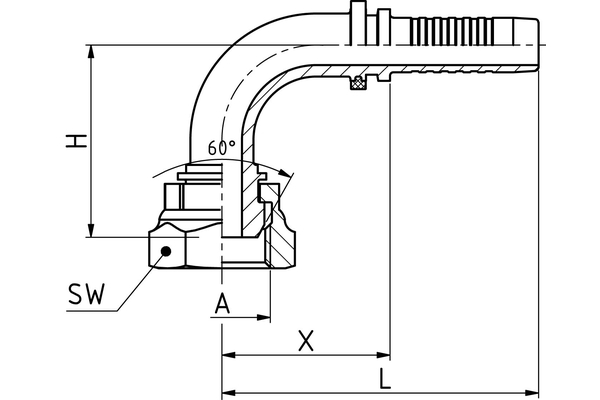

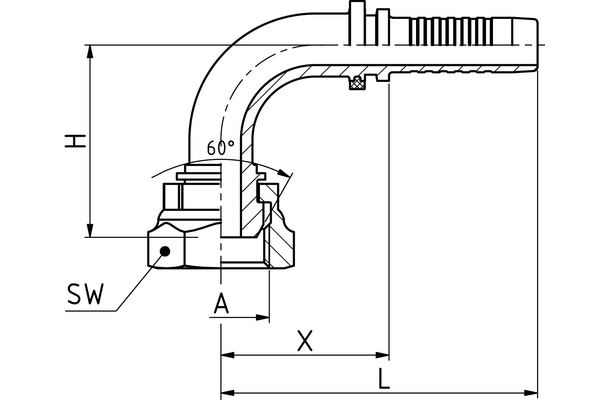

DN: 10 Size: 6 Inch: 3/8 Schroefdraad + norm: BSP-afdichtkop, 60°-conus met wartel, BSP-schroefdraad Aansluitingschroefdraad A: G 3/8" X [mm]: 33,0 L1 [mm]: 66,5 H [mm]: 40,5 SW1 [mm]: 22 Moertype: Cr Aansluitingaanduiding Indunorm: BF 90° Aansluitingmethode: DKR 90° Armaturenserie: Universeel programma XV Bestendigheid tegen roodroest [h]: 720 Bestendigheid tegen witroest [h]: 120 Materiaal: Automatenstaal Oppervlak: Zn-Ni Uitvoering: 90°
