Productinformatie
-
Technische gegevens

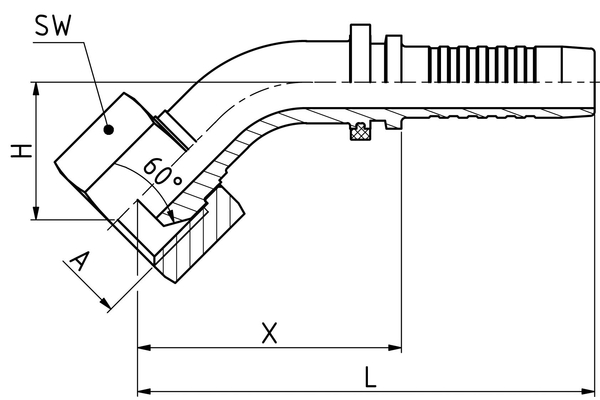

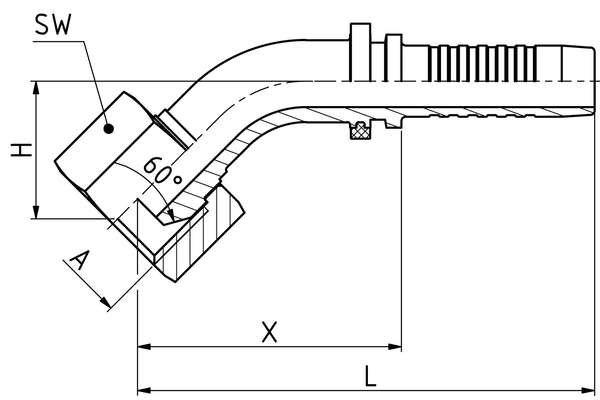

DN: 25 Size: 16 Inch: 1 Schroefdraad + norm: BSP-afdichtkop, 60°-conus met wartel, BSP-schroefdraad Aansluitingschroefdraad A: G 1" X [mm]: 111,0 L1 [mm]: 165,3 H [mm]: 31,0 SW1 [mm]: 38,0 Moertype: Cr Aansluitingaanduiding Indunorm: BF 45° Aansluitingmethode: DKR 45° Armaturenserie: Universeel programma XV Bestendigheid tegen roodroest [h]: 144 Bestendigheid tegen witroest [h]: 72 Materiaal: Automatenstaal Oppervlak: Cr3 Uitvoering: 45°
