Productinformatie
-
Technische gegevens

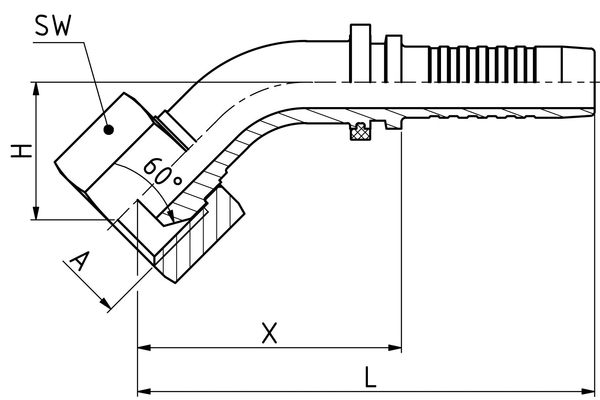

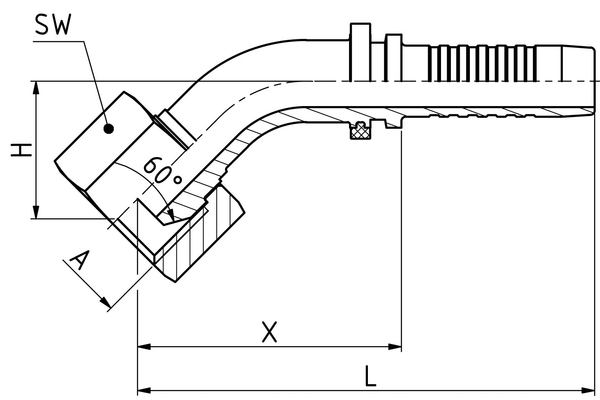

DN: 06 Size: 4 Inch: 1/4 Schroefdraad + norm: BSP-afdichtkop, 60°-conus met wartel, BSP-schroefdraad Aansluitingschroefdraad A: G 3/8" X [mm]: 43,0 L1 [mm]: 69,5 H [mm]: 18,0 SW1 [mm]: 22 Moertype: Cr Aansluitingaanduiding Indunorm: BF 45° Aansluitingmethode: DKR 45° Armaturenserie: Universeel programma XV Bestendigheid tegen roodroest [h]: 144 Bestendigheid tegen witroest [h]: 72 Materiaal: Automatenstaal Oppervlak: Cr3 Uitvoering: 45°
